Sizes
600×800 mm to 2500×1800 mm
Loading
Pedestrian; 2.4 T/m² surcharge / 3.4 T Axle Load
Location
Edge of road
Connection
Groove + sealant; flange bolt
Lifting
Special arrangement
Usage
Used for LMV , Cable Drains

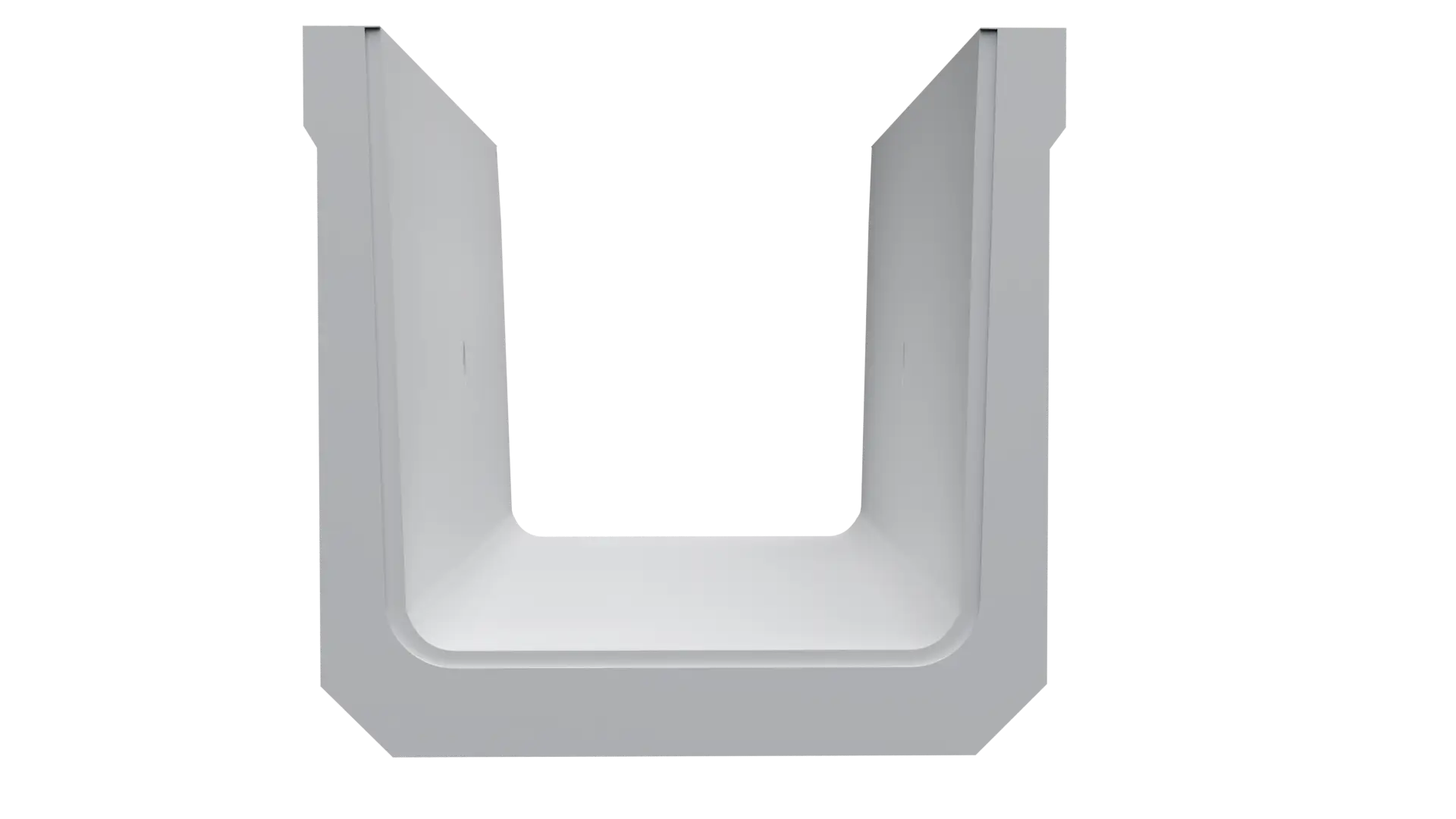

Sizes
300×300 mm to 900×900 mm
Loading
Pedestrian/LMV; 2.4 T/m² surcharge / 6 T Vehicle Load
Location
Edge of road with kerb
Connection
Groove with sealants
Lifting
Inbuilt inserts
Usage
Used for LMV , Cable Drains

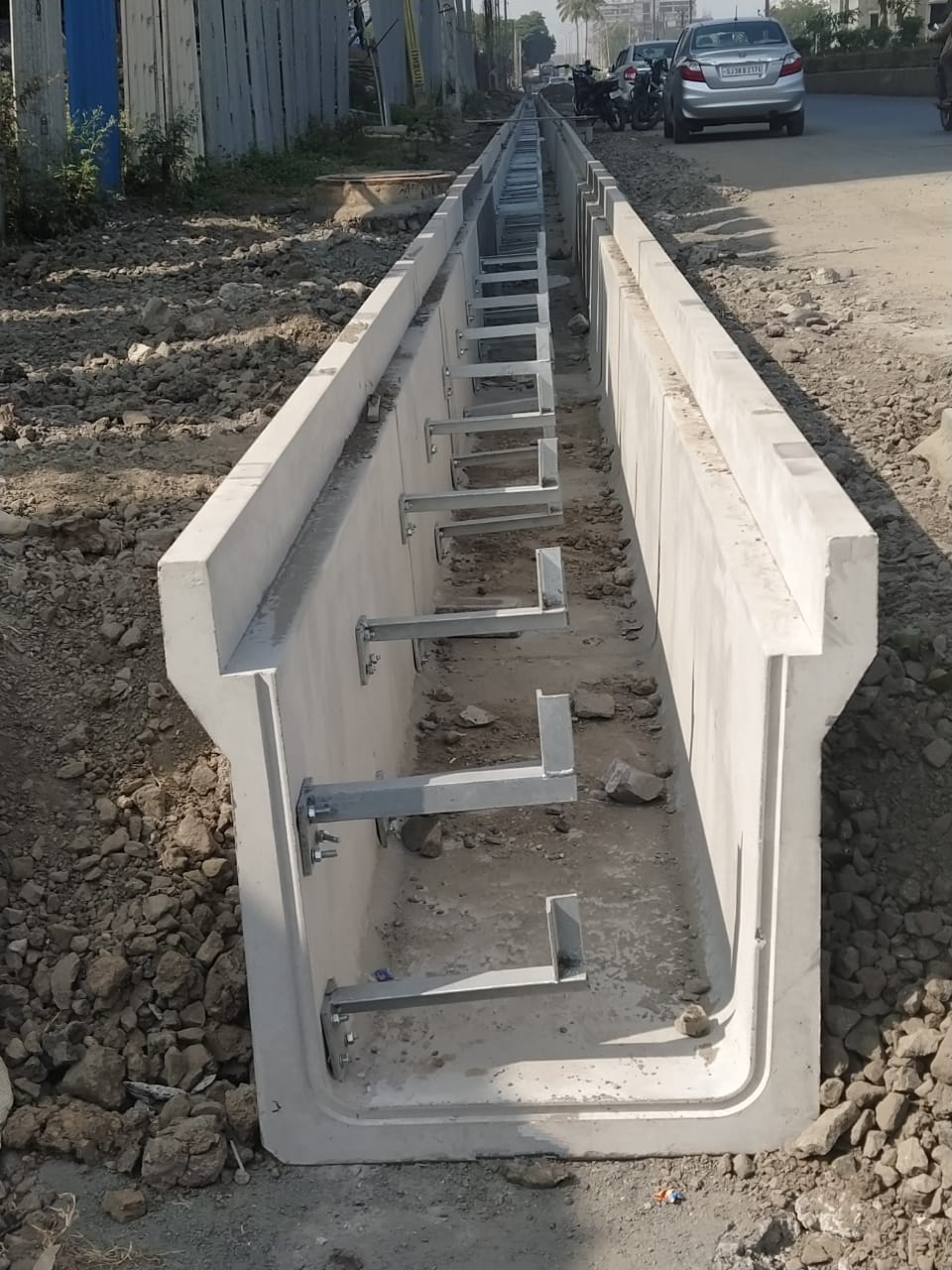

Sizes
300×300 mm to 1200×1200 mm
Loading
5 T wheel load / 2.4 T/m² surcharge
Location
Part of the road
Connection
Groove with sealants
Lifting
Inbuilt inserts
Usage
Used for heavy load vehicles, parallel to road
